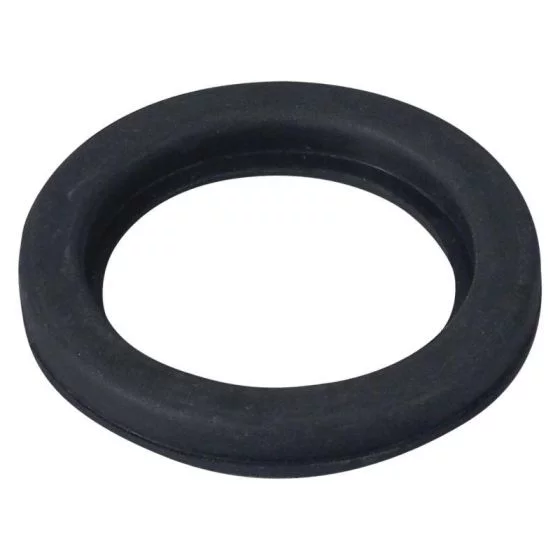

DIN gaskets are designed specifically for DIN fittings. The underside of the gasket is flat and butts up against the welding liner's flat face, while the top side has a rounded edge which fits nicely into the groove of the welding male. The round nut then joins the liner and male compressing the gasket creating a tight seal. Gaskets are matched to other DIN fittings based on the metric sizing (Ie: A 40mm gasket is used for any DIN fitting that is 40mm, including any Imperial (inch-based) fittings that are also listed as 40mm).
DIN Fittings (Deutsches Institute for Normung) are used extensively in Germany and throughout Europe in many Hygienic Industries and Brewing and Distilling.
What type of material should I use?
While we are prohibited from recommending a gasket type, we do offer a Chemical Resistance Chart (new window) that matches the resistance level of gasket materials to the different chemicals / food products you may be using. We may suggest using an A- or B-rated gasket for your particular application.
California Proposition 65 Information:
WARNING: This product can expose you to chemicals including Acrylonitrile, which is known to the State of California to cause cancer. For more information go to www.p65warnings.ca.gov.
Temperature Range: -30°F to +200°F
Acid Resistance: Good
Alkali Resistance: Good
Petroleum Oil Resistance: Excellent
Vegetable Oil Resistance: Good
Abrasion Resistance: Good
Compression Resistance: Good
Ethanol < 10%: Excellent
Ethanol 10% to 40%: Excellent
Ethanol > 40%: Good
