Tri Clamp to Female NPT Adapters

Coned, Short (Low Profile) & Regular Threaded NPT Fittings

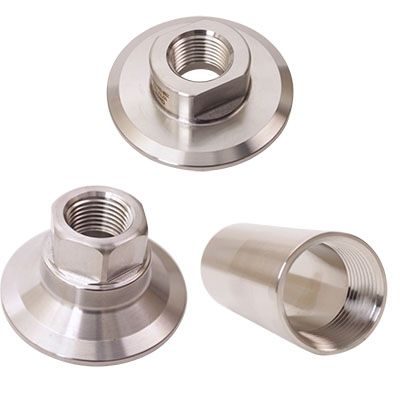

FNPT Adapters

FNPT Short (Low-Profile) Adapters

Short FNPTs create an elegant compact design with minimal distances and protrusions. Sometime smaller is better.

FNPT Cone Adapters

The Tri Clamp to NPT cone adapter has a significant advantage over its flat-faced counter part by using a tapered face to guide liquids down towards the NPT fitting, reducing turbulence, drag, and most importantly to prevent any kind of pooling.

National Pipe Taper (NPT)

NPT is a standardized fitting that is commonly used for joining pipe. Due to the tapered threads (wider diameter at the base of the threads, similar to a trapezoid) the male fitting will tighten the further it is threaded into the female. NPT follows the technical standards provided by the American National Standard Pipe Thread standards, often called national pipe thread, which is where the confusions with NPT arises, as NPT is specifically an acronym that refers to tapered pipe.

Determining NPT/NPS Size:

Sizing NPT/NPS is based on the nominal pipe diameter, and not the outside diameter (OD) of the threads. For example: A 1/2" NPT male has an outside thread diameter of approximately 3/4", but as stated the correct NPT size is 1/2", including the counterpart female. Notice: While NPT and NPS threads may be joined together, their threads may not create a proper seal, be loose fitting, or not form an optimal connection.

Items 1-25 of 31

Set Descending Direction
Page
per page
SKU Item Price
22MP-G150-050-CONE NPT Adapter Cone | Tri Clamp 1.5 in. x FNPT 1/2 in. (Cone) - SS304
$25.78
+ -
22MP-G150-025-CONE NPT Adapter Cone | Tri Clamp 1.5 in. x FNPT 1/4 in. (Cone) - SS304
$25.78
+ -
22MP-G150-0375-CONE NPT Adapter Cone | Tri Clamp 1.5 in. x FNPT 3/8 in. (Cone) - SS304
$28.93
+ -
22MP-G200-050-CONE Eta: < 07/26/2022 NPT Adapter Cone | Tri Clamp 2 in. x FNPT 1/2 in. (Cone) - SS304
$38.30
+ -
22MP-G200-025-CONE NPT Adapter Cone | Tri Clamp 2 in. x FNPT 1/4 in. (Cone) - SS304
$38.30
+ -
22MP-G200-0375-CONE NPT Adapter Cone | Tri Clamp 2 in. x FNPT 3/8 in. (Cone) - SS304
$38.30
+ -
22MP-G150-100-SHORT NPT Adapter Short | Tri Clamp 1.5 in. x FNPT 1 in. (Low Profile) - SS304
$17.16
+ -
22MP-G150-050-SHORT NPT Adapter Short | Tri Clamp 1.5 in. x FNPT 1/2 in. (Low Profile) - SS304
$17.30
+ -
22MP-G150-025-SHORT NPT Adapter Short | Tri Clamp 1.5 in. x FNPT 1/4 in. (Low Profile) - SS304
$14.83
+ -
22MP-G150-075-SHORT NPT Adapter Short | Tri Clamp 1.5 in. x FNPT 3/4 in. (Low Profile) - SS304
$19.75
+ -
22MP-G150-0375-SHORT NPT Adapter Short | Tri Clamp 1.5 in. x FNPT 3/8 in. (Low Profile) - SS304
$17.30
+ -
22MP-G200-050-SHORT NPT Adapter Short | Tri Clamp 2 in. x FNPT 1/2 in. (Low Profile) - SS304
$18.71
+ -
22MP-G200-025-SHORT Eta: < 07/26/2022 NPT Adapter Short | Tri Clamp 2 in. x FNPT 1/4 in. (Low Profile) - SS304
$20.74
+ -
22MP-G200-0375-SHORT NPT Adapter Short | Tri Clamp 2 in. x FNPT 3/8 in. (Low Profile) - SS304
$18.04
+ -
22MP-G300-050-SHORT NPT Adapter Short | Tri Clamp 3 in. x FNPT 1/2 in. (Low Profile) - SS304
$27.37
+ -
22MP-G300-025-SHORT NPT Adapter Short | Tri Clamp 3 in. x FNPT 1/4 in. (Low Profile) - SS304
$20.55
+ -
22MP-G300-0375-SHORT NPT Adapter Short | Tri Clamp 3 in. x FNPT 3/8 in. (Low Profile) - SS304
$27.37
+ -
22MP-G400-025-SHORT NPT Adapter Short | Tri Clamp 4 in. x FNPT 1/4 in. (Low Profile) - SS304
$26.04
+ -
22MP-G400-0375-SHORT NPT Adapter Short | Tri Clamp 4 in. x FNPT 3/8 in. (Low Profile) - SS304
$27.07
+ -
22MP-G150-100 NPT Adapter | Tri Clamp 1.5 in. x FNPT 1 in. - SS304
$16.48
+ -
22MP-G150-150 NPT Adapter | Tri Clamp 1.5 in. x FNPT 1.5 in. - SS304
$18.84
+ -
22MP-G150-050 NPT Adapter | Tri Clamp 1.5 in. x FNPT 1/2 in. - SS304
$17.50
+ -
22MP-G150-075 NPT Adapter | Tri Clamp 1.5 in. x FNPT 3/4 in. - SS304
$18.36
+ -
22MP-G200-100 Eta: < 07/26/2022 NPT Adapter | Tri Clamp 2 in. x FNPT 1 in. - SS304
$21.18
+ -
22MP-G200-150 Eta: < 07/26/2022 NPT Adapter | Tri Clamp 2 in. x FNPT 1.5 in. - SS304
$28.24
+ -
