Mini Sight Glass Assembly
With Interchangeable End Connections
Mini Sight Glass
The long awaited customizable mini sight glass is finally here. The ideal solution for inline reading of fluid flow, color, or opacity; using NPT or JIC fittings. Or, if reading a Tri-Clamp port coming off of a tank or pressure vessel, then transitioning to a JIC or NPT hose. We offer 8 connection options to fit your needs. We also use standard 3/8" Tri-Clamp Gaskets to seal the glass inline, so if your process needs more chemical resistance, changing from a Silicone to an FKM gasket is a simple switch. The high quality borosilicate gauge glass has a through bore of 5/16", maximizing the connection options and visibility, while being short enough to not drastically affect fluid flow from its bore size.
The Sight Glass Assembly - Instructions

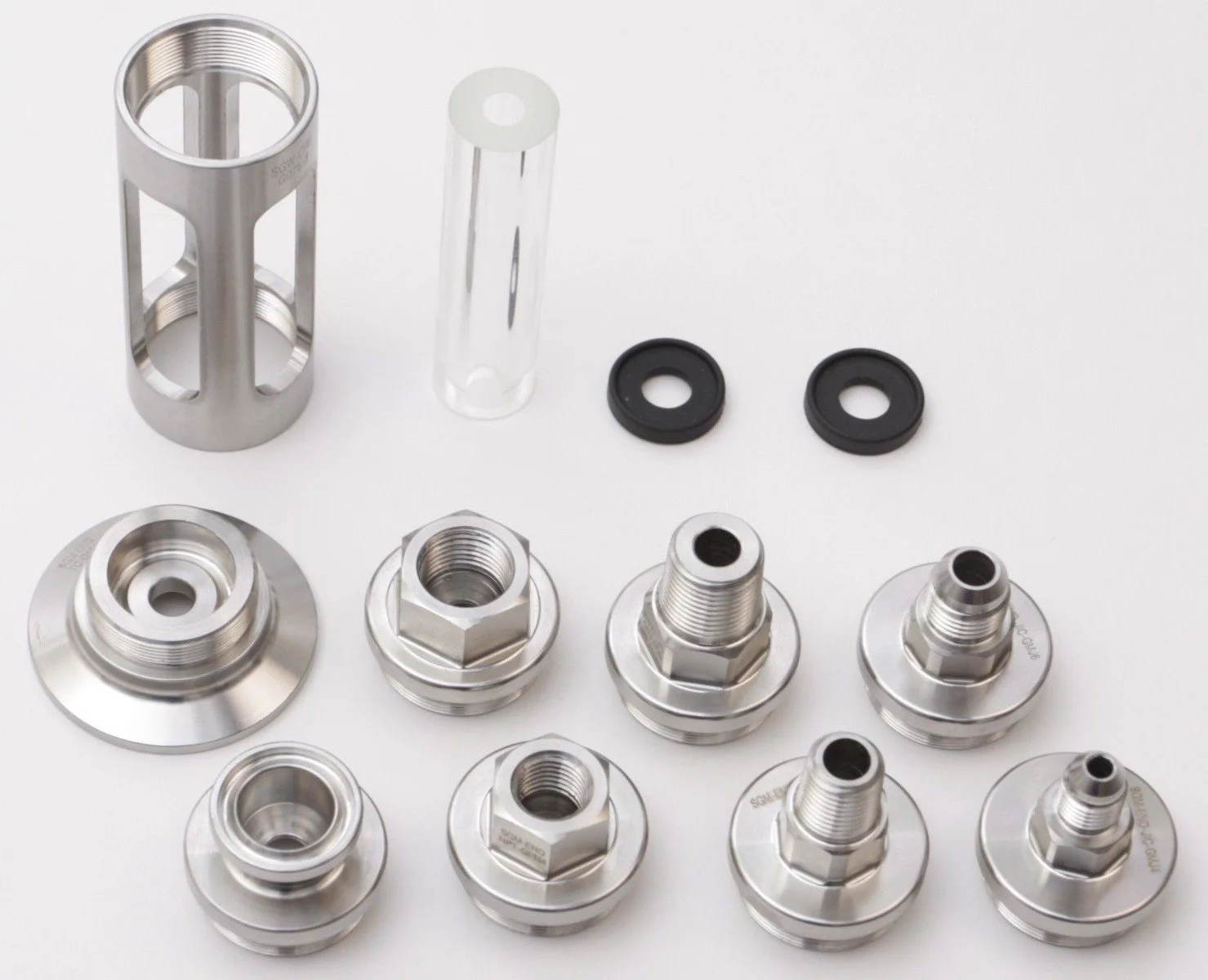

To build a complete sight glass you will need to Add to Cart the 3 main components:
- The Core Case + 3/4 in. Glass Tube
- Two (2) 3/8 inch gaskets of your choice (FKM, Silicone)
- Two (2) sight glass ends (SGM-END-xxxx) of your choice (same or different).
- 1 x SGM-CORE-G075-003 (case + glass)
- 2 x 42MPSFY-0375-FDA (2 x FKM gaskets)
- 1 x SGM-END-GFN6 (female NPT)
- 1 x SGM-END-GMJ6 (male JIC)
- These product(s) are intended only for use in accordance with all federal, state, and local laws, regulations, and ordinances, and Glacier Tanksā€™ specifications. Depending on the type of oil you are extracting, these product(s) may not be legal to operate in some areas.
- Glacier Tanks strongly discourages any unlawful use of these product(s) and is not responsible for any damage or injury caused by their misuse or unlawful use.
- These product(s) are designed and intended for operation in well-ventilated outdoor areas.
- Any person or entity that uses these product(s) or information provided by Glacier Tanks does so subject to Glacier Tanksā€™ Terms and Conditions, and accepts all liability concerning the use of the product(s) or information listed above.
- DANGER! Never extract with butane or propane indoors. Doing so may cause serious injury or death.
