Sight Glass Mini | End - Male JIC 1/4 in. - SS304
|Connection Size(s)||1/4 in.|
|Quantity in stock||21|

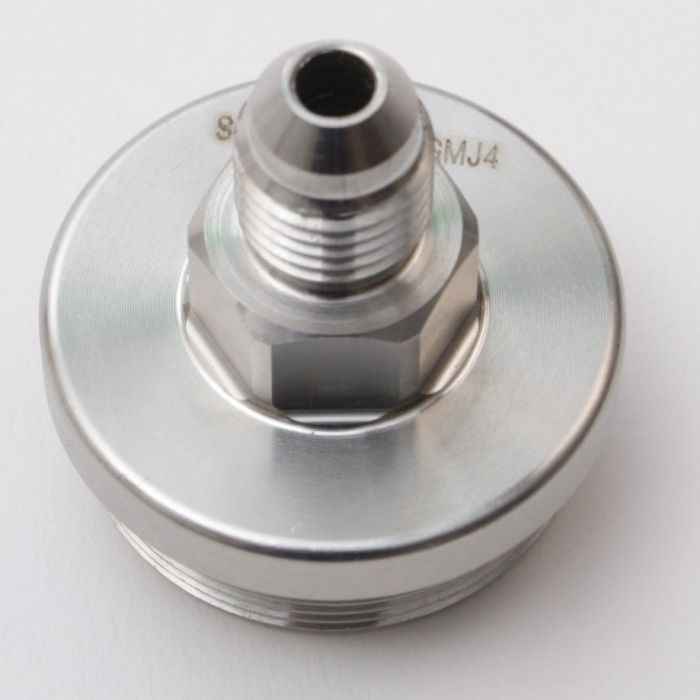

The Male JIC 1/4 inch end is one of several adapters available with our mini inline sight glass. The 3/4 inch MNPT connection threads into the cage body sealing the gasket against the glass core. Each sight glass will support two same or different ends.
Mini Sight Glass
The long awaited customizable mini sight glass is finally here. The ideal solution for inline reading of fluid flow, color, or opacity; using NPT or JIC fittings. Or, if reading a Tri-Clamp port coming off of a tank or pressure vessel, then transitioning to a JIC or NPT hose. We offer 8 connection options to fit your needs. We also use standard 3/8" Tri-Clamp Gaskets to seal the glass inline, so if your process needs more chemical resistance, changing from a Silicone to an FKM gasket is a simple switch. The high quality borosilicate gauge glass has a through bore of 5/16", maximizing the connection options and visibility, while being short enough to not drastically affect fluid flow from its bore size.
The Sight Glass Assembly - Instructions
To build a complete sight glass you will need to Add to Cart the 3 main components:
- The Core Case + 3/4 in. Glass Tube
- Two (2) 3/8 inch gaskets of your choice (FKM, Silicone)
- Two (2) sight glass ends (SGM-END-xxxx) of your choice (same or different).
- 1 x SGM-CORE-G075-003 (case + glass)
- 2 x 42MPSFY-0375-FDA (2 x FKM gaskets)
- 1 x SGM-END-GFN6 (female NPT)
- 1 x SGM-END-GMJ6 (male JIC)
