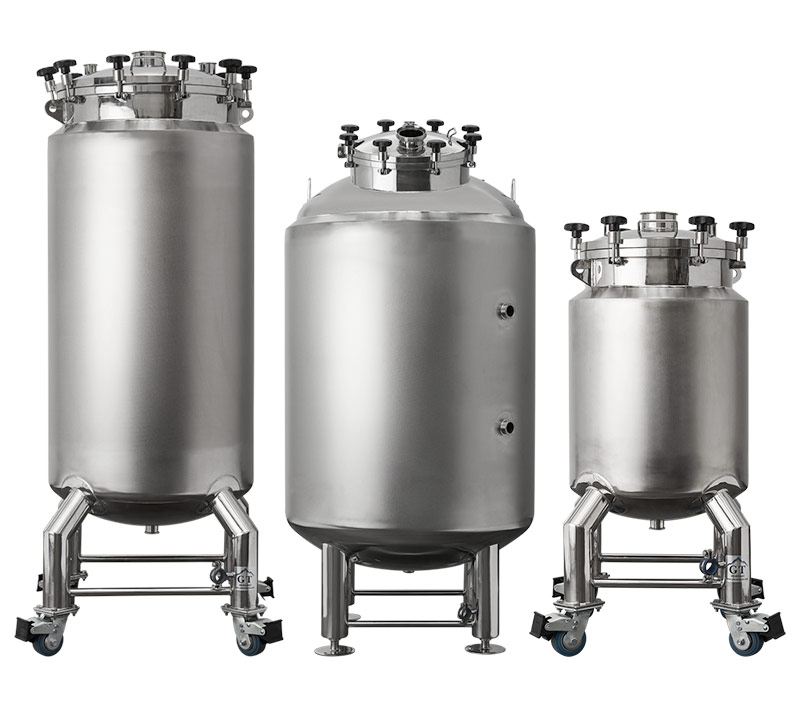

Jacketed Material Processing Vessels

Material Processing Vessels

Ethanol Extraction Tanks

Jacketed Ethanol Extraction Vessels

Jacketed Material Processing Vessels offer improved functionality for the ethanol-centered botanical extraction industry as opposed to tanks adapted from other industries. Each extraction vessel comes standard with a 3 mm thick SS304 tank body with straight walls and a fully draining bowl bottom. Material Processing Vessels are equipped with casters for easy mobility, a large, round pressure manway on top for easy access, and a 1.5 in. Tri Clamp drain. The manway has a large, center 4 in. Tri Clamp port, a 2 in. TC port, and two 1.5 in. TC ports. These tanks come with a 1 year warranty and include a drain assembly, valve, clamps, gaskets, and end caps to cap off any unused ports (depending on your process). Each jacketed extraction vessel is pressure rated at 14.7 psi.

  • Stainless Steel 304 body
  • Large, Round Top Pressure Manway w/ Tri Clamp ports: 4 in., 2 in., & (2) 1.5 in. Tri Clamp
  • Tank Body Thickness: 3mm
  • Dimple Cooling Jacket w/ (2) 1 in. MNPT orts
  • 2 in. Perlite Iinsulated clad layer 2 mm thick
  • Operating pressure capable to 1 bar (14.7 psi)
  • Tri Clamp 1.5 in. drain (Drain assembly and valve included)
Open Filters

12 Items

Set Descending Direction
per page
SKU Item Price
JMPV-010-GAL In Stock: 0 Material Processing Vessel | 10 Gallon Tank - Jacketed
$2,610.00
$2,610.00
JMPV-100-GAL In Stock: 12 Material Processing Vessel | 100 Gallon Tank - Jacketed
$6,022.50
$6,022.50
JMPV-125-GAL In Stock: 0 Material Processing Vessel | 125 Gallon Tank - Jacketed
$9,300.00
$9,300.00
JMPV-015-GAL In Stock: 0 Material Processing Vessel | 15 Gallon Tank - Jacketed
$4,070.00
$4,070.00
JMPV-150-GAL In Stock: 0 Material Processing Vessel | 150 Gallon Tank - Jacketed
$7,755.00
$7,755.00
JMPV-200-GAL In Stock: 0 Material Processing Vessel | 200 Gallon Tank - Jacketed
$8,842.50
$8,842.50
JMPV-030-GAL In Stock: 8 Material Processing Vessel | 30 Gallon Tank - Jacketed
$3,712.50
$3,712.50
JMPV-300-GAL In Stock: 5 Material Processing Vessel | 300 Gallon Tank - Jacketed
$10,320.00
$10,320.00
JMPV-400-GAL In Stock: 0 Material Processing Vessel | 400 Gallon Tank - Jacketed
$16,500.00
$16,500.00
JMPV-500-GAL In Stock: 0 Material Processing Vessel | 500 Gallon Tank - Jacketed
$19,270.00
$19,270.00
JMPV-060-GAL In Stock: 10 Material Processing Vessel | 60 Gallon Tank - Jacketed
$5,092.50
$5,092.50
JMPV-700-GAL In Stock: 0 Material Processing Vessel | 700 Gallon Tank - Jacketed
$22,520.00
$22,520.00
