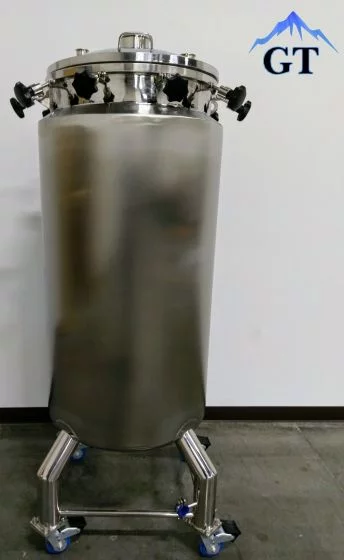

Material Processing Vessel | 100 Gallon Tank - Jacketed

Loading...
SKU JMPV-100-GAL
Brand Glacier Tanks
Connection Type(s) Tri Clamp
Connection Size(s) 1.5 in., 2 in., 4 in.
Warranty Yes
Stainless Steel SS304
Total Volume 100 Gallons
Avalability In stock
Material Processing Vessel | 100 Gallon Tank - Jacketed is available to buy in increments of 1
Reg: $8,030.00 Price: $7,227.00
Request Quote to Buy


Please contact us directly to order this item (360-953-8453)

Jacketed Ethanol Vessels

Jacketed Material Processing Vessels offer improved functionality for the ethanol-centered botanical extraction industry as opposed to tanks adapted from other industries. Each vessel comes standard with a 3 mm thick SS304 tank body with straight walls and a fully draining bowl bottom. Material Processing Vessels are equipped with casters for easy mobility, a large 18 inch round pressure manway on top for easy access, and a 1.5 in. Tri Clamp drain. The manway has a large center 4 in. Tri Clamp port. These tanks come with a 1 year warranty and include a drain assembly, valve, clamps, gaskets, and end caps to cap off any unused ports (depending on your process). Each jacketed extraction vessel is pressure rated at 14.7 psi.

  • Stainless Steel 304 body
  • Top Pressure Manway w/ Tri Clamp ports
  • Tank Body Thickness: 3mm
  • Dimple Cooling Jacket w/ 1 in. MNPT ports
  • 2 in. Perlite insulated clad layer 2 mm thick
  • Operating pressure capable to 1 bar (14.7 psi)
  • Tri Clamp 1.5 in. drain (Drain assembly and valve included)
