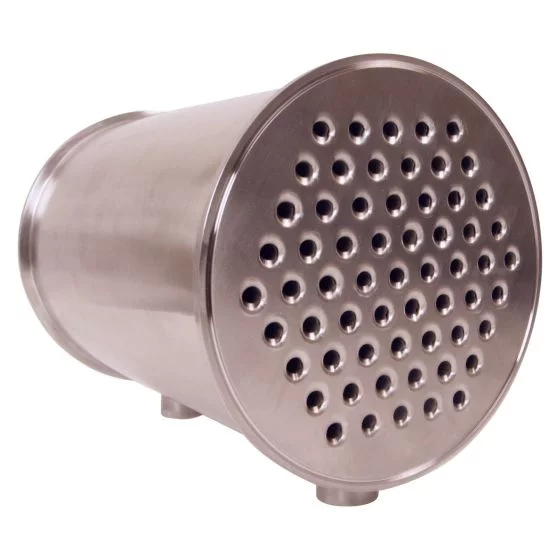

Condenser | Tri Clamp 8 in. x 12 in. - w/ (61) 1/2 in. Tubes, (2) FNPT 3/4 in. - SS304

Loading...
SKU CND-G800-012-0500-61T
Location 3-06R-B3
Brand Glacier Tanks
Connection Type(s) Tri Clamp
Connection Size(s) 3/4 in., 8 in.
Item Length 12 in.
Warranty Yes
Stainless Steel SS304
Avalability In stock
Quantity in stock 3
Condenser | Tri Clamp 8 in. x 12 in. - w/ (61) 1/2 in. Tubes, (2) FNPT 3/4 in. - SS304 is available to buy in increments of 1
Reg: $1,494.20 Price: $1,195.36
+ -

Tri Clamp ("shotgun" or "tube-in-tube") condensers function as heat exchangers. Coolant enters via an FNPT port circulating & cooling the metal tubing through which your vapor or solvent passes vertically. The gas condenses into a liquid and runs back down under the influence of gravity where it is reclaimed and placed back into a collection tank. Glacier Tanks' tri clamp condensers feature baffles which specifically disperse coolant throughout the interior of the spool offering higher heat exchange efficiency. In the distilling industry these condensers are generally called dephlegmator or reflux condensers.

Condenser surface areas

SKUM2FT2
CND-G200-018-0375-7T0.0780.835
CND-G200-036-0375-7T0.1551.67
CND-G300-018-0375-19T0.2112.27
CND-G300-036-0375-19T0.4214.53
CND-G400-012-0500-19T0.1711.84
CND-G400-024-0500-19T0.3423.68
CND-G600-012-0500-37T0.3333.58
CND-G600-024-0500-37T0.6667.16
CND-G800-012-0500-61T0.5495.91
CND-G800-024-0500-61T1.09811.82
CND-G1000-012-0750-61T0.929.91
CND-G1000-018-0750-61T1.37914.85
CND-G1000-024-0750-61T1.8419.8
CND-G1200-012-0750-91T1.37214.77
