DIN Weld Male | 40mm
|Connection Size(s)||40 mm|
|Item Length||2.559 in.|
|Item Width||2.559 in.|
|Item Height||1.299 in.|
|DIN Standards||DIN 11851 / RD 65 x 1/6|
|Resources||DIN 11851 Guide|
|Quantity in stock||14|

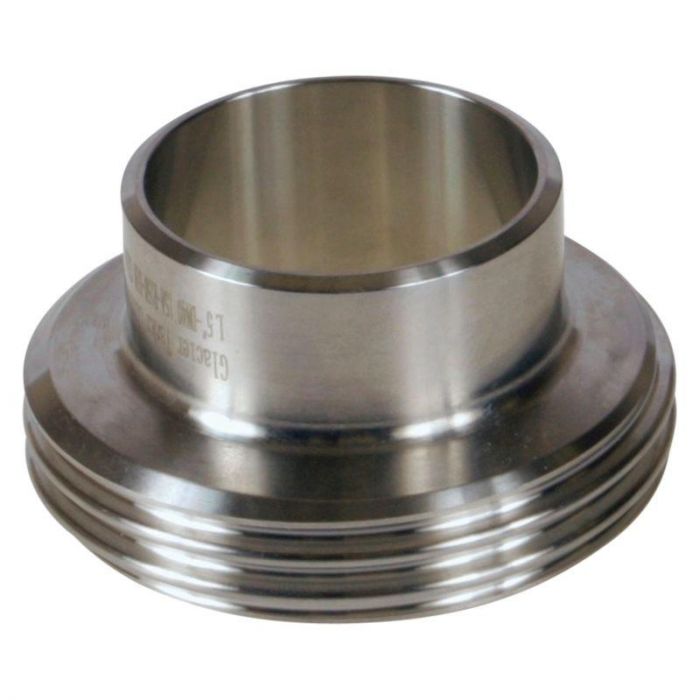

DIN welding males make up one side of a DIN union and fit into the welding male with a gasket of choice. The round nut then presses the welding liner and welding male together compressing the gasket and forming a tight seal.Understanding DIN fittings
DIN 11851 fittings are used extensively throughout Europe and the UK, and as such are the most common European fittings encountered in the US. A complete DIN union consists of a slotted DIN round nut, a threaded welding male, a gasket and welding liner. The welding male and welding liner are available in both Imperial and metric tube sizes, however the threads of the welding male and round nut are always measured in metric (mm) sizes. The most common points of confusion are two fold:
- The welding liner fits into the welding male, thus the liner acts 'male' and the male 'female', but it is the welding male that fits inside the round nut.
- DIN fittings are sized together via their metric measurement, but the liner and male tube size is available in both metric and imperial. Thus in the US, imperial males and liners are commonly welded onto inch-based tubing. Example: To use 1.5 inch tubing, we would weld onto a 1.5 in. (40mm) welding liner and/or welding male. These would be joined via a 40mm gasket and round nut.
DIN Fittings (Deutsches Institute for Normung) are used extensively in Germany and throughout Europe in many Hygienic Industries and Brewing and Distilling.
