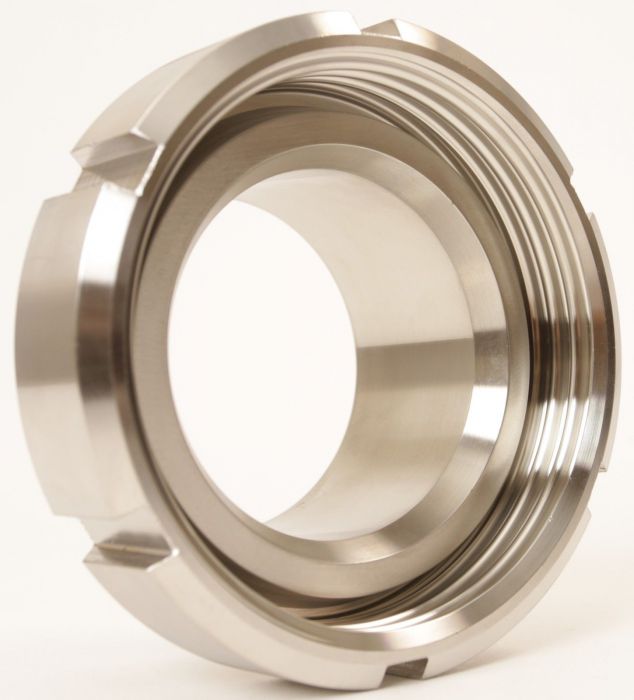

DIN to Tri Clamp Adapter | Liner & Nut x TC 2.5 in. (65mm)

Loading...
SKU DIN-14I-13R-TC-G250
Location 4-02R-D1
Brand Glacier Tanks
Connection Type(s) DIN, Tri Clamp
Connection Size(s) 2.5 in.
Warranty Yes
DIN Standards DIN 11851 / RD 95 x 1/6
Resources DIN 11851 Guide
Avalability In stock
Quantity in stock 16
DimensionsInchesMillimeters
D2.37060.20
D13.04777.39
D23.15080.01
D34.410112.01
L2.09053.09
DIN to Tri Clamp Adapter | Liner & Nut x TC 2.5 in. (65mm) is available to buy in increments of 1
Reg: $68.65 Price: $54.92
+ -

DIN Welding Liner to Tri Clamp Adapter

A DIN welding liner to Tri Clamp adapters greatly simplifies the transition between the European and American standard sanitary fittings. The DIN welding liner threads conform to the European metric standard which fits the appropriately sized (and included) DIN Nuts, and the Tri Clamp is the standard US ferrule size for use with sanitary clamps.

Understanding DIN fittings

Deutsches Institut fur Normung (DIN) 11851 fittings are used extensively throughout Europe and the UK, and as such are the most common European fittings encountered in the US. A complete DIN union consists of a slotted DIN round nut, a threaded welding welding liner, a gasket and welding liner. The welding welding liner and welding liner are available in both Imperial and metric tube sizes, however the threads of the welding welding liner and round nut are always measured in metric (mm) sizes.
