Heating Element | MNPT 2 in. Electric 3-Phase 9kw 208 x 22 in. Immersion Length - High 60 Watts / sq. in. - SS316
|Store Location (Aisle-Bay-Shelf)||Drop Ship|
|Brand||Bucan - (6 - 8 week lead time)|
|Connection Size(s)||2 in.|
|Immersion Length||B Length: 22 in.|

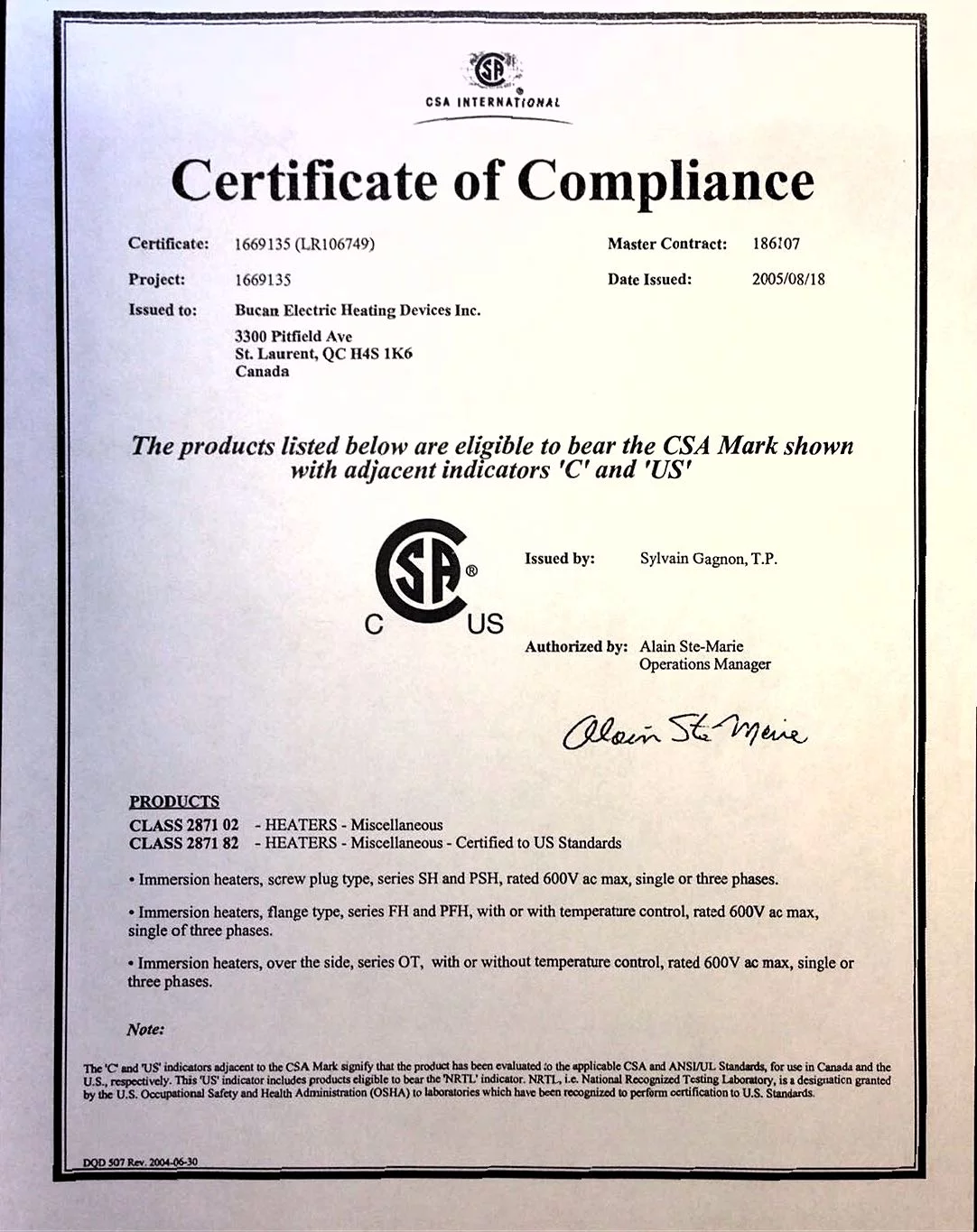

|Resources||Bucan Screw Plug Immersion Heaters,Bucan Warranty,Bucan CSA Certificate|
|Other Attributes||Watt Density: 60wsi|Tube Diameter: 0.43 in.|

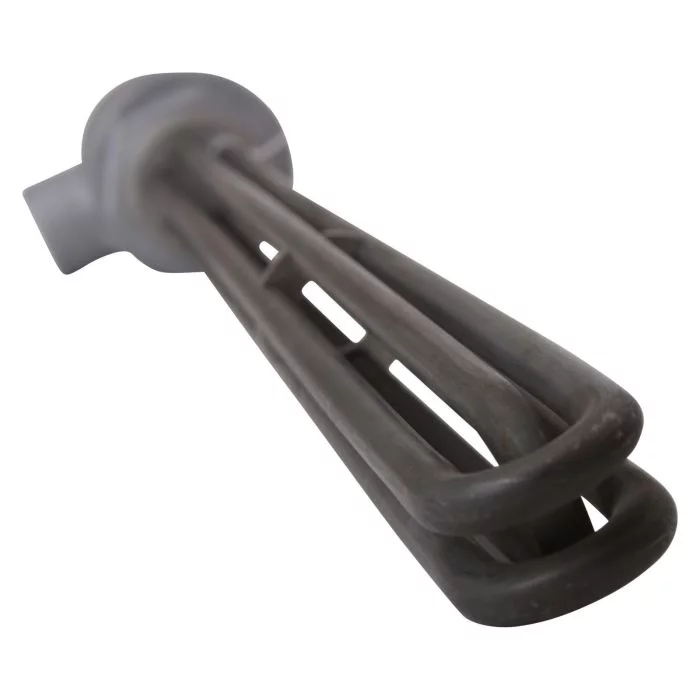

Bucan screw plug electrical immersion heaters are designed to be immersed directly into the gas or liquid being heated; since these heaters come into direct contact with the gas or liquid, heat-up times are very fast. Immersion heaters manufactured at Bucan consist of a single or a set of tubular elements that are formed into hairpins and welded to a screw plug. These are commonly used in electric breweries or other processes requiring hot water. Bucan immersion heaters are CSA-US certified for use in commercial facilities. NOTE: These heaters will not fit through a 2 inch tri clamp ferrule. A 2 inch NPT connection is necessary.
Custom options from the Bucan product line can be quoted upon request. Configuration is Delta unless otherwise specified. If you need Wye configuration please indicate in special instructions. Built to order - Estimated lead time is 4-6 weeks.
- NEMA 4 (Moisture Proof) Enclosure
- 208V 3 Phase
- 2 in. MNPT SS316 Screwplug
- 4 in. Cold Section
- 3 x SS316 Hairpin Elements
