High Pressure Sight Glass | Tri Clamp 4 in. - SS304 / FKM / PTFE
|Store Location (Aisle-Bay-Shelf)||4-01R-E1|
|Connection Type(s)||Tri Clamp|
|Connection Size(s)||4 in.|
|Material||FKM, PTFE, Tempered Borosilicate|
|Maximum Pressure||145 psi|
|Quantity in stock||0|

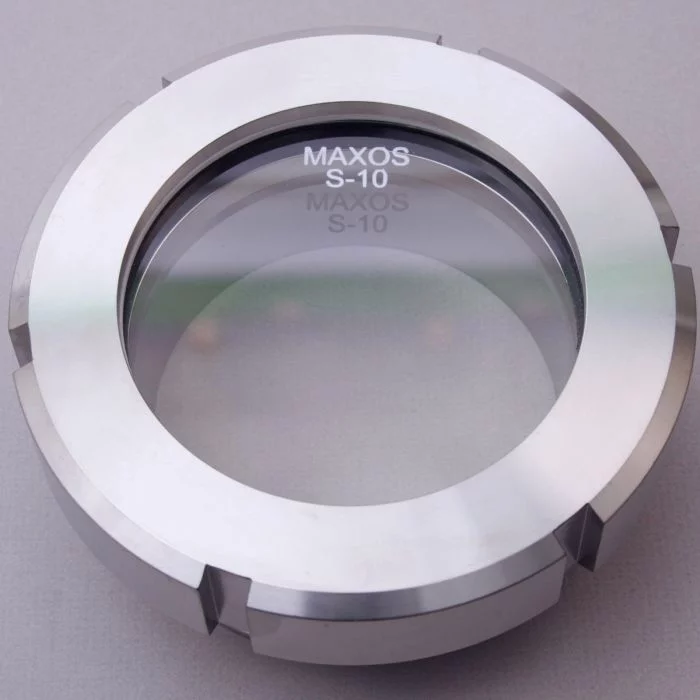

Process view sight glasses offer the ability to view product within the tank without exposing it to outside elements. They are often installed as a semi-permanent fixture on a variety of tanks to allow visual monitoring in the midst of operation. Each stainless steel sight glass comes apart for easy cleaning. The high pressure sight glasses feature Maxos glass, a German manufactured tempered borosilicate glass capable of withstanding substantially greater pressure than the standard glass counterpart.
Maxos glass works in conjunction with Glacier Tanks' high pressure sight glass which has the appropriate PTFE and DIN 11851 compatible nut designed to cover a larger portion of the glass. Using Maxos glass in a standard sight glass will severely compromise the safety factor as the PTFE gasket and nut do NOT reduce the unsupported diameter to meet our Safety Factor values.
What is FKM?
FKM is a family of fluoroelastomer materials defined by the ASTM International standard D1418, an equivalent to FPM by ISO/DIN 1629 standard. All FKMs contain vinylidene fluoride as a monomer. Originally developed by DuPont under the brand name "Viton", generic FKMs are produced today by several manufacturers around the globe, though not all meet FDA requirements. Fluoroelastomers provide additional heat and chemical resistance and are more expensive than neoprene or nitrile rubber elastomers.
Glacier Tanks will accept returns of website standard stocking items, but only if:
- The item is new, unused, and in resalable condition;
- You notify Glacier Tanks and request a return authorization within 30 days of your receipt of the item;
- You return the item to Glacier Tanks, postage/shipping prepaid within 5 days of Glacier Tanks' return authorization (RMA);
Once your items have been received by Glacier Tanks and verified to be unused, we will refund your purchase price, less shipping costs. Returns will incur a 15% restocking fee. Return shipping costs are your responsibility and shall not be paid by Glacier Tanks.
The following items are non-returnable:
- Special or Discounted items - labeled by button color:
- Special Order
- Drop Ship
- Custom order
- All Gaskets & Seals
Please be sure you understand and agree to any drawings supplied to you prior to purchase of custom or special order items. Payment of deposits for custom or special order items indicates your approval and acceptance of such custom or special order items.
