See All ReviewsMidco Economite Burner | RE4850BA Forced Air 850000 BTU
SKU | MIDCO-RE4850BA |
---|---|
Store Location (Aisle-Bay-Shelf) | Drop Ship |
Brand | Midco |
Item Length | 29 in. |
Item Width | 20 in. |
Item Height | 20 in. |
Warranty | Yes |
Resources | General Info, Installation Manual |
The RE4850BA technology features a patent-pending retention head design which shapes the flame into an efficient and compact flame pattern. This design concentrates heat for more efficiency heat exchange surfaces.
Specifications
 | RE4850BA | RE4850A |
Minimum Input Rating* | 280,000* | 280,000* |
Maximum Input Rating* | 850,000* | 850,000* |
Gas Connection Pipe Size | 1" NPT | 1" NPT |
Gas Pressure 2 Required Natural/Propane | 7" to 14" W.C. | 7" to 14" W.C. |
Diameter of Nozzle | 4.0" | 4.0" |
Maximum Nozzle Insertion Depth | 8.0" | 8.0" |
Motor Horsepower1 | 1/6 | 1/6 |
Design Certification or Listed By | U.L./C.U.L Listed | U.L./C.U.L Listed |
Primary Safety Voltage | 24V | 120V |
Shipping Weight | 55 lbs. | 59 lbs. |
*BTU/HR
- Electrical Supply 115 / 1 / 60 as standard
- Available in Natural and Liquid Propane
- LP requires a conversion kit
Â
1 Gas Burner Draft Motors
115 / 1 / 60
230 / 1 / 60
Contact Glacier Tanks for 50 Hz Applications (non-UL Listed)
2 For Lower Gas Inlet Capacities Contact Glacier Tanks

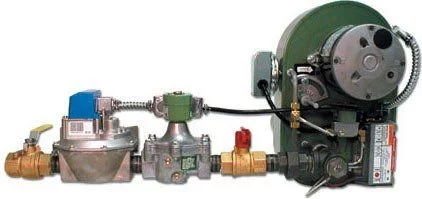

The RE4850BA is available as a fully assembled power burner with control system. For further information please contact Glacier Tanks.
Features  Benefits
The RE4850BA Technology Provides . . .
- A more uniform consistent heat distribution throughout the applications combustion chamber.
- A Universal Mounting Flange making installation fast and easy. Welded flange assemblies are also available to accommodate OEM specifications.
- A compact design for reduced applications over-all dimensions.
- Simple burner cartridge removal for easy serviceability.
- Reliable firing with 1/2" W.C. back pressure
- A new burner head and retention plate design affording efficient and stable combustion.
- Our Patent Pending Burner Design that increases efficiency by reducing the volume of oxygen used for combustion.
- Bi-directional manifold allowing OEMs to reduce their burner inventory.
