Product Description
- All Midco burners & accessories are shipped directly from Midco International, and are not available for Will Call or in-store purchase.
- Midco burners & accessories are non-returnable.

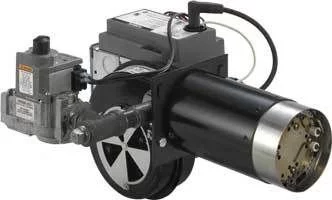

Midco International is proud to announce an addition to its legendary Economite Power Gas Burner line. The standard Economite EC Series Power Gas Burners are engineered to match a wide variety of applications or customized to meet OEM applications. The compact design not only meets or exceeds industry standards; it also packs a lot of power for its size. Sheet metal construction affords high volume production and shorter lead times giving you a better-cost to value ratio. Each unit is fully assembled and factory fire tested assuring you a high quality performance product. Installation is effortless with our integrated junction box and universal mounting flange.
- Space Saving Design
- Rock Solid
- Packed with Power
- All Rolled into One Great Burner!
Specifications
*BTU/HR (UL Listed)
Flame Safety:
- Direct Spark Ignition
- with100% shut-off,
- 30 second pre-purge
- Redundant 1/2" NPT Main
- Automatic Gas Valve
Electrical Supply:
- 120/1/60, 3 AMP (Standard)
- 230 Volt 50/60HZ (Available - Contact Factory)
The EC Series is available as a fully assembled power burner with an integrated burner control system. For further information please contact Glacier Tanks
|

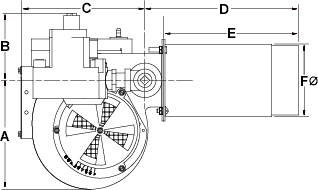

A |
B |
C |
D |
E |
F |
G** |
H |
| EC200 |
5 5/16" |
3 11/16" |
7 1/2" |
8 5/8" |
7 1/2" |
Ø 4" |
6 13/16" |
6 13/16" |
| EC300 |
6 9/16" |
3 11/16" |
8 1/4" |
8 5/8" |
7 1/2" |
Ø 4" |
6 13/16" |
9" |
** Approximate
Features & Benefits
- Interchangeable Stainless Steel Burner Retention Heads:
- compatibility to different applications
- operation under variable draft or positive pressure condition
- firing into small combustion chambers
- Integrated Direct Spark Ignition System with Pre-Purge:
- compliance with ANSI Z21.20 standard
- timed pre-purge clears the combustion chamber before ignition cycle
- proper sequencing of the burner operation
- Light and Compact Removable Burner Assembly from the Burner Tube and Flange:
- ease of serviceability and correct burner alignment
- Pre-Piped, Pre-Wired, Factory Fired Tested:
- ease of installation
- reliable operational sequence
- Compact Design and Small Footprint:
- light weight for lower shipping cost
- space saving compatibility to different applications firing into small combustion chambers
- Universal Mounting Flange:
- Application flexibility
- Universal Bolt Pattern
- OEM welded flange available
- Air Shutter Positive Lock Fitting:
- no shifting of air shutter caused by vibration
- reduction of unauthorized adjustment
- Adjustable External Air Shutter with Indication:
- visual indication of air shutter position
- faster burner set up
- Field Convertible Triple Function Redundant Gas Valve:
- Quiet and maintenance free
