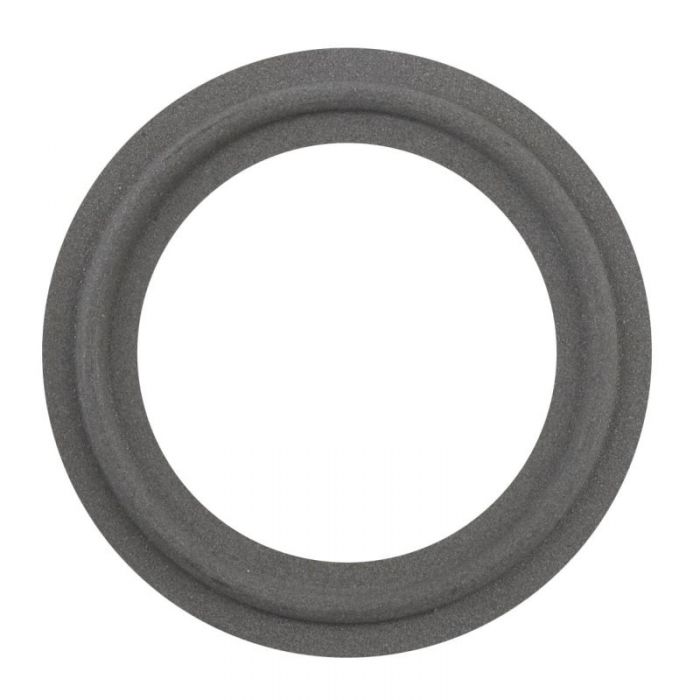

See All ReviewsTuf-Steel Gasket | Tri Clamp 2 in. - FDA
SKU | 40MPG-TS-200-FDA |
---|---|
Store Location (Aisle-Bay-Shelf) | 0-CA6-B3 |
Brand | Rubber Fab |
Certifications | FDA |
Connection Type(s) | Tri Clamp |
Connection Size(s) | 2 in. |
Item Length | 2.516 in. |
Item Width | 2.516 in. |
Item Height | 0.2 in. |
Material | PTFE, Steel Blend |
MPN | 40MPG-TS-200 |
Warranty | Yes |
FDA Approved | Yes |
Resources | Chemical Resistance Chart,Rubber Fab Gasket Shelf Life |
Quantity in stock | 35 |
Tuf-Steel® is composed of a unique 50/50 blend of nonpigmented PTFE and 316L passivated and atomized stainless Steel° Testing and seven years of documented application usage has demonstrated that Tuf-Steel® is the choice for perfect surface performance, outstanding durability and extended service life in both SIP (steam in place) and WFI (water for injection) applications. Tuf-Steel® is ideal for sanitary steam pipe connections in extreme temperatures ranging from -320°F to 550°F. The superior strength of Tuf-Steel® eliminates creep and cold flow providing a leak-free seal and preventing maintenance problems and system downtime. Tuf-Steel gaskets are USP 87, 88 Class IV, and 3A certified.
- 500 CIP/SIP Cycles guaranteed
- -325°F to 550°F
- Superior creep resistance
- Excellent expansion/contraction stability with minimal thermal expansion
- Excellent chemical resistance
- Stops leaks when correctly torqued to clamp specifications
- No gasket extrusion into the sanitary tube I.D.
- No obstruction of flow
- Maintains sealing stability in T processes
- Non-stick surface
- Non pigmented
- Passivated to eliminate rouging
Rubber Fab's 1"-4" Type I gaskets are:
- FDA CFR 177.2600
- FDA CFR 177.1550
- U.S. Pharmacopeia Class VI Certification
- ADI Free (Animal Derived Ingredient Free) certified
- Manufactured according to cGMP Guidelines
What type of material should I use?
While we are prohibited from recommending a gasket type, we do offer a Chemical Resistance Chart (new window) that matches the resistance level of gasket materials to the different chemicals / food products you may be using. We may suggest using an A- or B-rated gasket for your particular application.
