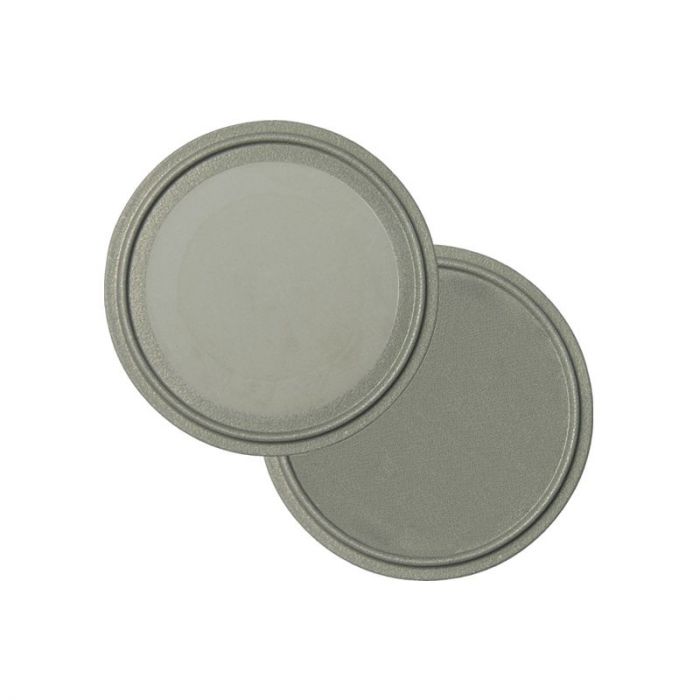

Tuf-Steel Orifice Plate Gasket | Tri Clamp 3/4 in. - SS316 / FDA
|Connection Type(s)||Tri Clamp|
|Connection Size(s)||3/4 in.|
|Item Length||0.984 in.|
|Item Width||0.984 in.|
|Item Height||0.2 in.|
|Material||PTFE, Steel Blend|
|Resources||Con/Eccentric Orifice Plates,Chemical Resistance Chart,Rubber Fab Gasket Shelf Life|
Rubber Fab's orifice plates can advance your systems performance, adjust flow rates, balance backflow and equalize backpressure during SIP procedures. Achievable benefits while maintaining sanitary conditions.
Tuf-Steel® is composed of a unique 50/50 blend of nonpigmented PTFE and 316L passivated and atomized stainless steel. Testing and seven years of documented application usage has demonstrated that Tuf-Steel® is the choice for perfect surface performance, outstanding durability and extended service life in both SIP (steam in place) and WFI (water for injection) applications. Tuf-Steel® is ideal for sanitary steam pipe connections in extreme temperatures ranging from -320°F to 550°F. The superior strength of Tuf-Steel® eliminates creep and cold flow providing a leak-free seal and preventing maintenance problems and system downtime. Tuf-Steel gaskets are USP 87, 88 Class IV, and 3A certified.
What type of material should I use?
While we are prohibited from recommending a gasket type, we do offer a Chemical Resistance Chart (new window) that matches the resistance level of gasket materials to the different chemicals / food products you may be using. We may suggest using an A- or B-rated gasket for your particular application.
California Proposition 65 Information:
WARNING: This product can expose you to chemicals including Tetrafluoroethylene which is known to the State of California to cause cancer. For more information go to www.p65warnings.ca.gov.
