Tuf-Steel Orifice Plate Gasket | Tri Clamp 1 in. - SS316 / FDA / Tabbed
|Connection Type(s)||Tri Clamp|
|Connection Size(s)||1 in.|
|Item Width||1.984 in.|
|Item Height||0.2 in.|
|Material||PTFE, Steel Blend|
|Resources||Con/Eccentric Orifice Plates,Chemical Resistance Chart,Rubber Fab Gasket Shelf Life|

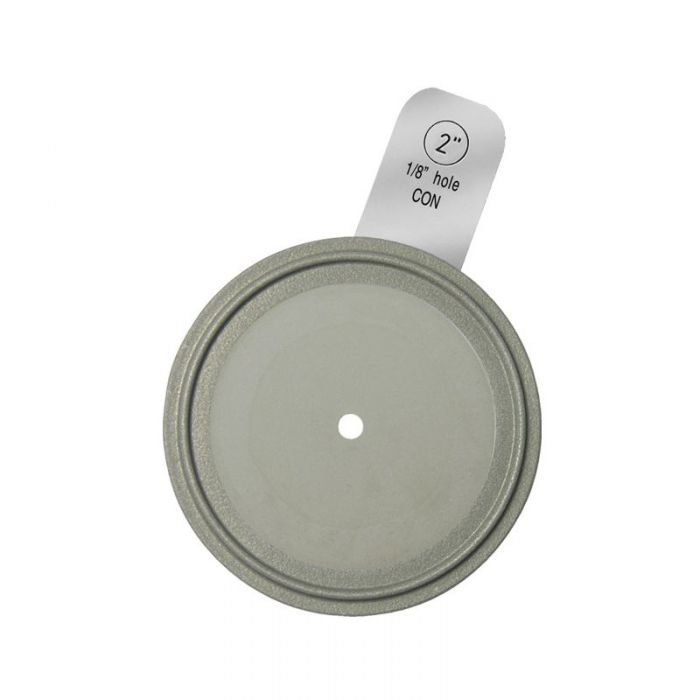

Rubber Fab's orifice plates can advance your systems performance, adjust flow rates, balance backflow and equalize backpressure during SIP procedures. Achievable benefits while maintaining sanitary conditions. Tabs help to acknowledge that an orifice plate is "in line" and can be laser engraved to indicate the hole diameter, gasket size or user specified information. This Tabbed design of sanitary orifice plate, when coupled with Rubber Fab's slotted clamp, allows the operator complete flexibility when balancing a sanitary pipeline system.
Tuf-Steel® is composed of a unique 50/50 blend of nonpigmented PTFE and 316L passivated and atomized stainless steel. Testing and seven years of documented application usage has demonstrated that Tuf-Steel® is the choice for perfect surface performance, outstanding durability and extended service life in both SIP (steam in place) and WFI (water for injection) applications. Tuf-Steel® is ideal for sanitary steam pipe connections in extreme temperatures ranging from -320°F to 550°F. The superior strength of Tuf-Steel® eliminates creep and cold flow providing a leak-free seal and preventing maintenance problems and system downtime. Tuf-Steel gaskets are USP 87, 88 Class IV, and 3A certified.
What type of material should I use?
While we are prohibited from recommending a gasket type, we do offer a Chemical Resistance Chart (new window) that matches the resistance level of gasket materials to the different chemicals / food products you may be using. We may suggest using an A- or B-rated gasket for your particular application.
California Proposition 65 Information:
WARNING: This product can expose you to chemicals including Tetrafluoroethylene which is known to the State of California to cause cancer. For more information go to www.p65warnings.ca.gov.
