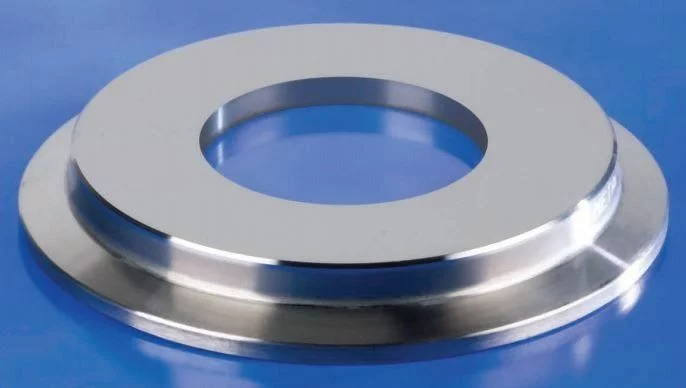

View Port | Tri Clamp 2 in. - Duplex Stainless Steel 2205
|Connection Type(s)||Tri Clamp|
|Connection Size(s)||2 in.|
|Item Length||1.984 in.|
|Item Width||1.984 in.|
|Resources||View Port Specs|
|Stainless Steel||Duplex 2205|
The strongest, most secure sanitary sight glass available, Viewport' mechanically prestressed windows are available in a sanitary clamp design for sight ports in processing applications or inline visual flow indicators.
Unlike some other sight glasses, Viewport sight glasses meet the USP Type 1 standard for pharmaceutical use.
Described as offering the optics of glass and the strength of steel, these glass elements provide a level of safety, and a useful service life, well beyond that provided by conventional tempered glass or plastic in sanitary service. Even at the most extreme temperatures (as high as 536°F) or in overpressure situations, sudden, total failure - that involving leakage or explosive shattering of the glass - essentially never occurs.Approvals and Technical Data:
- USP Class VI (tested to confirm biocompatibility)
- BPE Compliant and TUV Approved
- Sight glass fused to metal conforming to DIN7079
- Borosilicate glass to USP Type I and DIN7080
- Standard surface finish of 10 Ra µ-in (0.25 µm)
- Material to ASTM/ASME, TUV and DIN/EN standards
- Certificate of Conformity to EN 10204-3.1B or 3.1A
- Pressure Equipment Directive 97/23/EG
