See All ReviewsSystem Mounting Rack | 3 ft. x 4 ft. Rolling Platform w/ 4 Casters - SS304
SKU | SRC-G34-45 |
---|---|
Store Location (Aisle-Bay-Shelf) | O/S |
Brand | Glacier Tanks |
Connection Type(s) | Tri Clamp |
Connection Size(s) | 1.5 in. |
Warranty | Yes |
Stainless Steel | SS304 |
Quantity in stock | 8 |

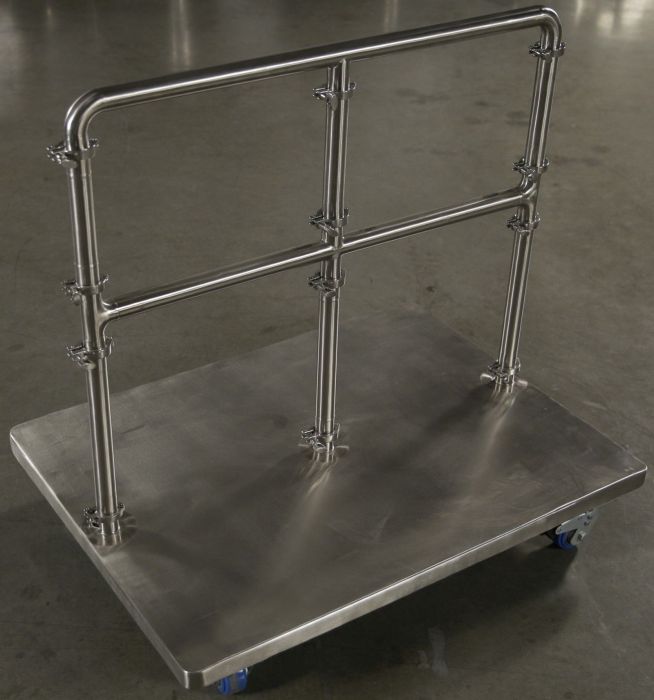

System racks are a modular rack constructed entirely of stainless steel and fastened using standard sanitary clamps and Rubber Fab Tuf-Steel gaskets as they do not deform under pressure. This compatibility with other Tri Clamp fittings (elbows, crosses, tees, spools, etc?) allows further customization and expansion. Vessel clamps (sold separately) attach to either the horizonal or vertical A270 tubing frame. Note: Additional horizontal bars can built using 15 in. long spool(s) depending on your platform size. Of course, they will require additional tees, crosses, and 2 or 3 additional spool legs with length of your choice.
Note: Please select TBA for shipping so we can determine the best and least expensive way to ship to your location.
Three different sizes of system racks are available:
- 23 in. x 24 in. (small)
- 23 in. x 45 in. (medium)
- 34 in. x 45 in. (large)
The small & medium (23 in. deep) platform units have the rack offset to one side for a front facing work area, while the large unit has a centered rack allowing mounting on both sides without the risk of tipping inherent to the small & medium rack. Each platform comes with:
- 1 stainless steel platform
- 4 caster wheels + bolts
- 12 x 1.5 in. single-hinge clamp (8 for small platform)
- 12 x 1.5 in. Tuf-Steel gaskets (8 for small platform)
- 3 x Tri Clamp 1.5 in. x 15 in. thick-wall spools as lower legs (2 for small platform)
- 3 x Tri Clamp 1.5 in. x 10 in. thick-wall spools as upper legs (2 for small platform)
- 1 x one-piece horizonal bar sized to platform
- 1 x one-piece top bar sized to platform
