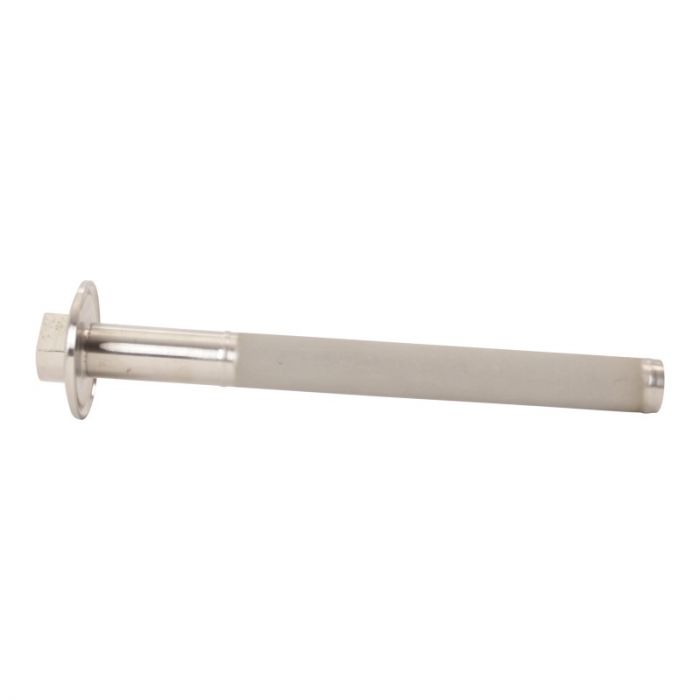

Carbonation Stone | Tri Clamp 1.5 in. x 6 in. x FNPT 1/4 in. - SS316
|Connection Type(s)||FNPT, Tri Clamp|
|Connection Size(s)||1/4 in., 1.5 in.|
|Item Length||8.8 in.|
|Item Width||2.516 in.|
|Item Height||2.516 in.|
|Resources||Carbonation Stone Care Guide|
|Quantity in stock||58|
Carbonation stones, typically found on brite beer fermentation tanks, are designed for direct mounting via a Tri Clamp fitting. Each carbonation stone, made from sintered stainless steel SS316, is a submersible porous body that diffuses CO2 gas directly into brewing liquid. In an ideal system, the stone is mounted on the lowest part of the brite tank providing for the longest distance for CO2 to travel to the head. Some brewers use a carbonating stone inside a conical fermenter (or Uni Tank), rather than a brite tank. We also have a very popular carbonation guide (new window will open).
Wort Aeration / Oxygenation
Carbonation stones are a fantastic tool to aerate wort. Keeping yeast at optimum health is achieved when the oxygen-deprived wort is aerated following the knock down process (usually inline immediately after exiting the chiller). This helps the yeast not only reproduce efficiently, but also maintain a healthy cell wall that is more tolerant to higher alcohol contents. This allows for several generations of yeast, and more importantly, can reduce fermentation time substantially resulting in faster batch turnover. More information is available in our wort aeration guide (new window will open).
Carbonation Stone Size Guidelines
These are merely guidelines; stones shorter than recommended simply take more time. Long necks are recommended for jacketed tanks, so the porous section protrudes fully into the main liquid body, however, this is not a requirement.
- 4 in. carb stone (1 BBL or less)
- 6 in. carb stone (2 - 6 BBL)
- 8 in. carb stone (7 - 29 BBL)
- 12 in. carb stone (30 BBL+)
All Tri Clamp carbonation stones have the following features:
- 1½ inch Tri Clamp fitting mounts on tank ferrule
- ¼ inch FNPT gas connection
- ¼ inch FNPT fitting
- sintered stainless steel diffusing stone
- 2 micron porosity
- Stainless steel 316 body
