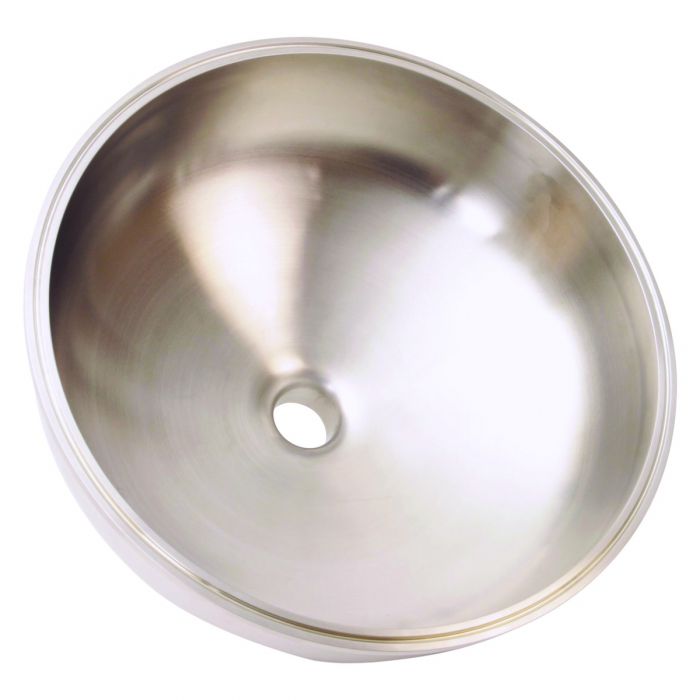

Bowl Reducer | Tri Clamp 12 in. x 1.5 in. - SS304
|Connection Type(s)||Tri Clamp|
|Connection Size(s)||1.5 in., 12 in.|
|Item Length||12.55 in.|
|Item Width||12.55 in.|
|Quantity in stock||63|
Bowl Reducer Bases vs Collection Plates
Depending on your setup, your collection vessel bottom can either use a bowl reducer (often with an attached valve) or a collection plate. Both are available in jacketed or non-jacketed versions. The bowl reducer has an advantage by needing only a valve opened to drain out the extract oil. The heavier collection plate overcomes that drawback by being a secondary vessel if further processing is required, for example, if further solvent recovery is needed.
The extraction/collection tank collects the extracted oil and solvent at the end of the process. The larger the vessel the more trim (raw plant matter) can processed simultaneously. It is not uncommon for a large collection vessel to be the repository of multiple material columns, provided it has enough volume to hold a sufficient solvent quantity initially. Once in the collection vessel, the solvent is warmed until it reverts to a gaseous form which can then be removed with a recovery pump such as the Haskel brand we carry. The extracted oil ("drop off") can then be poured into an external container for further vacuum purge if necessary.
What is Solvent Extraction?
Solvent extraction is the process of diffusing a solvent into oil-bearing cells resulting in a mixed solution of oil and solvent. It is one of the most popular methods of separating oils and fats from oil-bearing materials as opposed to other mechanical processes (such as expellers, hydraulic press, etc...) primarily due to the high percentage of oil recovered which can range upwards of 99%+ as opposed to the 85%+ of other methods. The common solvents of choice range from butane, hexane, and pentane among a handful of others, each of which is favored because of several factors: commercial economics, a low boiling point, and in the case of consumption grade product, a non-toxic impact. Distillation of the resulting oil mixture allows recovery of the alkane hydrocarbons (your "hex/but/propane") to be reused at minimal costs.
