Click the image to zoom
| SKU | 13MHP-G600 |
|---|---|
| Brand | Glacier Tanks |
| Stainless Steel | SS304 |
| Connection Type(s) | Tri Clamp |
| Connection Size(s) | 6 in. |
| Item Length | 8.5 in. |
| Item Width | 7 in. |
| Item Height | 1 in. |
| Warranty | 1 Year |
| Quantity in stock | |
| Store Location: | 1-06L-A2 |

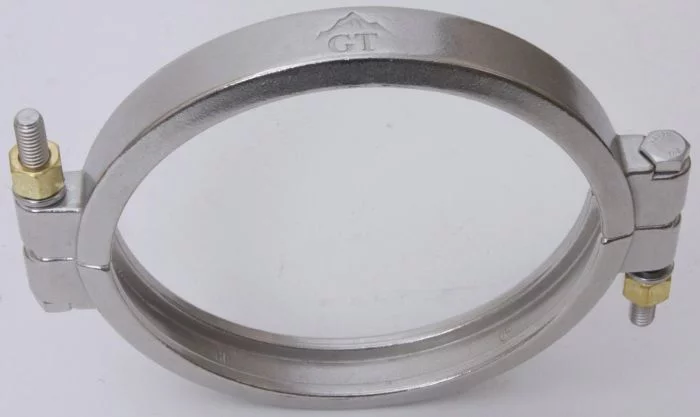

Bolted double pin high pressure clamps are a significant upgrade from the standard clamp, with the ability to withstand twice the pressure of comparable sized single or double hinged clamps. High pressure bolted clamps are available in stainless steel SS304, with sizes ranging from 3/4 inch up to 12 inches. Larger sizes are available by special order. Intended for Tri Clamp fitting connection, high pressure clamps are commonly used in situations where temperatures fluctuate and PTFE gaskets are installed.
Glacier Tanks recommends that all high pressure clamps be tightened as per the table under "Specificiations" to apply proper pressure and ensure a solid, leak free seal. However, over tightening a high pressure clamp may cause the gasket to fail from over-compression and place too much tension on the clamp threads.
Learn more about clamp sizing & gaskets in our Tri Clamp Sizing Guide.
WARNING: This product can expose you to chemicals including lead and lead Compounds, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information go to www.p65Warnings.ca.gov.
| Maximum Clamp Pressure Ratings (PSI) | |||||||
|---|---|---|---|---|---|---|---|
| Single Hinge (13MHM) | Double Hinge (13MHHM-DP) | High Pressure (13MHP) | |||||
| Size | 70F | 250F | 70F | 250F | 70F | 250F | Max Torque |
| 3/4 in. | 1500 | 1200 | 1500 | 1200 | 1500 | 1200 | 130 In LBf |
| 1.5 in. | 500 | 250 | 500 | 250 | 1500 | 1200 | 130 In LBf |
| 2 in. | 450 | 250 | 450 | 250 | 1000 | 800 | 130 In LBf |
| 2.5 in. | 400 | 200 | 400 | 200 | 1000 | 800 | 130 In LBf |
| 3 in. | 350 | 150 | 350 | 150 | 1000 | 800 | 130 In LBf |
| 4 in. | 200 | 125 | 200 | 125 | 800 | 600 | 200 In LBf |
| 6 in. | 150 | 75 | 300 | 200 | 200 In LBf | ||
| 8 in. | 100 | 50 | 250 | 150 | 200 In LBf | ||
| 10 in. | 40 | 30 | 200 | 125 | 200 In LBf | ||
| 12 in. | 30 | 25 | 150 | 100 | 200 In LBf | ||
