Jacketed Material Processing Vessels
Ethanol Extraction Tanks
Jacketed Ethanol Extraction Vessels

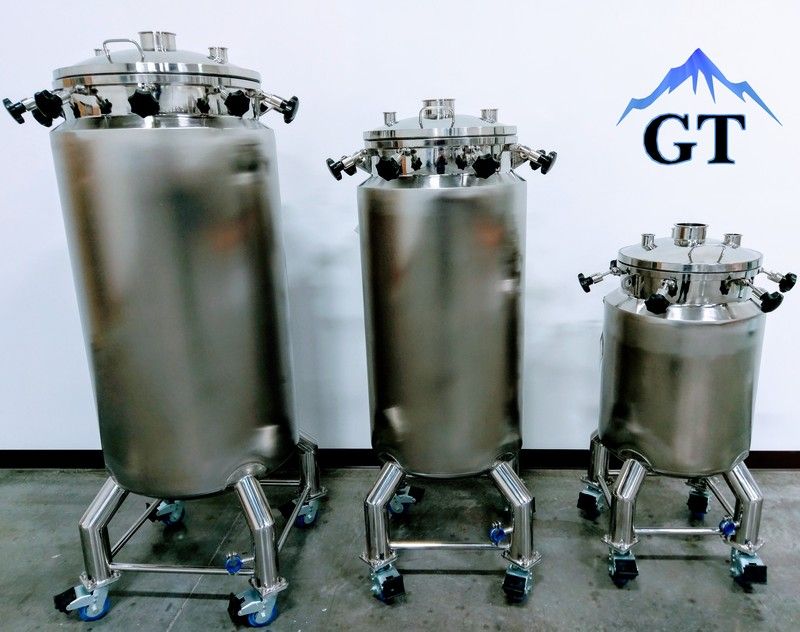

Jacketed Material Processing Vessels offer improved functionality for the ethanol-centered botanical extraction industry as opposed to tanks adapted from other industries. Each extraction vessel comes standard with a 3 mm thick SS304 tank body with straight walls and a fully draining bowl bottom. Material Processing Vessels are equipped with casters for easy mobility, a large, round pressure manway on top for easy access, and a 1.5 in. Tri Clamp drain. The manway has a large, center 4 in. Tri Clamp port, a 2 in. TC port, and two 1.5 in. TC ports. These tanks come with a 1 year warranty and include a drain assembly, valve, clamps, gaskets, and end caps to cap off any unused ports (depending on your process). Each jacketed extraction vessel is pressure rated at 14.7 psi.
- Stainless Steel 304 body
- Large, Round Top Pressure Manway w/ Tri Clamp ports: 4 in., 2 in., & (2) 1.5 in. Tri Clamp
- Tank Body Thickness: 3mm
- Dimple Cooling Jacket w/ (2) 1 in. MNPT orts
- 2 in. Perlite Iinsulated clad layer 2 mm thick
- Operating pressure capable to 1 bar (14.7 psi)
- Tri Clamp 1.5 in. drain (Drain assembly and valve included)
